Bezpečnostní fotobuňka s odrazkou Simu CR 2008394

Detailní popis produktu

Bezpečnostní fotobuňka s odrazkou Simu CR 2008394 je optická reflexní infrazávora s reflexní odraznou plochou o průměru 80 mm k pohonům vrat a bran.

Nemůžete-li vést kabely na druhou stranu vozovky či vjezdu, využijete tento fotočlánek s odrazkou od Simu. Výhodou fotočlánku s odrazným sklíčkem SIMU CR 2008394 je také možná montáž s nastavením ve třech polohách (otočení po 90 st.), viz video:

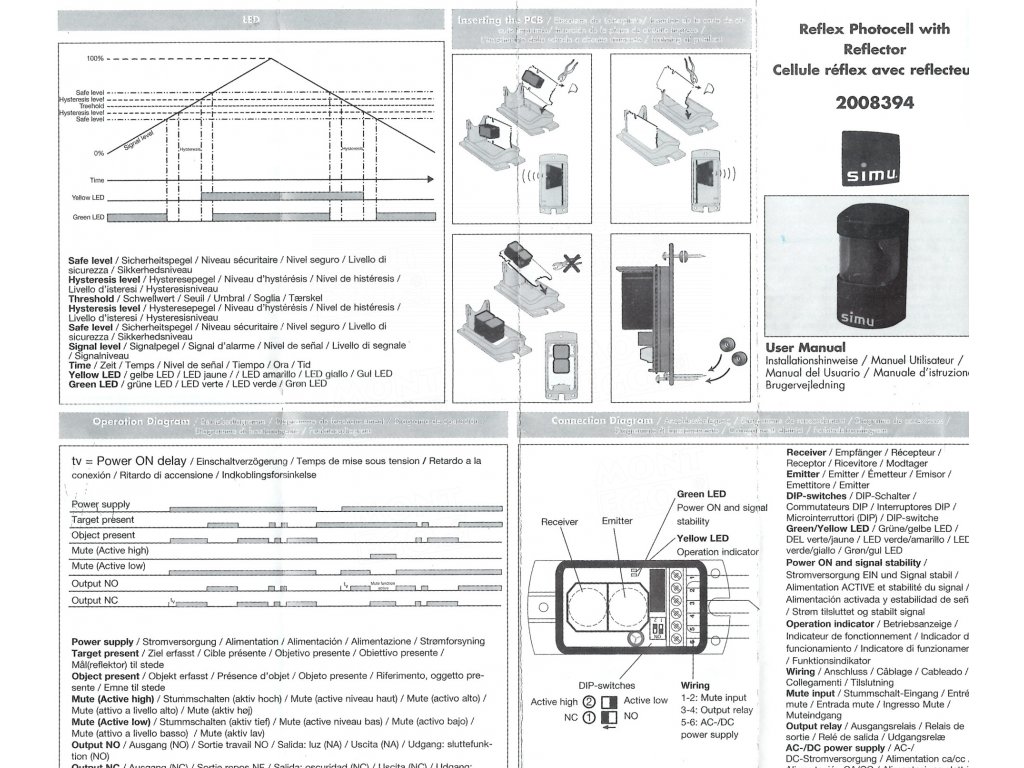

Mounting
1) When installing the sensor, make sure that the maximum range is not
exceeded and – if two sensors are mounted close to each other - make sure
that cross talk is avoided.
2) Mount the reflector in the wanted position, reflective surface pointing
towards the sensor. Adjust the sensor horizontally and vertically so that the
sensor points at the center of the reflector.
3) The sensor must be mounted in an appropriate way in order to avoid
mechanical as well as electrical damages or fire.
4) Do not apply power to the sensor before all wires are correctly connected.
5) Apply power to the sensor terminals 5+6 and the yellow led will shuine if
installed correctly and no object is obstructing the light beam. If the light beam
is interrupted, the yellow LED will switch off.
Automatic doors
Europe:
1) The sensor must be mounted in accordance with EN13241-1, EN 12445
and EN12453.
2) For all outputs used for the safety purpose “ESPE type 2”, the application
controller has to check at least once during each opening or
closing cycle that the sensor has the correct function:
a. the outputs are closed before activating the “mute input” of the sensor and
b. the output is opened during activation of the “mute input” (test intervals
according to risk analysis or EN 12453).
3) Cross talk from another sensor must be avoided.
4) For each application according to EN 23453, the mounting must be verified
according to the mirror test described in EN 61496-2 in order to avoid
false reflections from surfaces nearby.
5) When mounted in outdoor applications, the sensor must be protected
against impact from top and sides. For example the sensor can be embedded
in the door frame or a protection cap can be used.
ENGLISH
Rated operating dist. (Sn
) 12 m
(0 to 5,000 lux) with reflector type ER 4, ref. target
Blind zone ≤ 0.15 m
Sensitivity Fixed
Temperature drift ≤ 0.6 %/°C
Differential travel (H)
Hysteresis 3 to 20%
Rated operational volt. (UB) 12-24 VDC ÷15 + 20%
AC: 45 to 65 Hz 12-24 VAC ÷15 + 20%
Rated operational power
(Relay ON) 12 VAC 648 mW
24 VAC 1680 mW
12 VDC 324 mW
24 VDC 840 mW
Output
Contact ratings (AgCdO) µ (micro gap)
Resistive loads AC 1 0.5 A/30 VAC
DC 1 1 A/30 VDC
Small inductive loads AC 15 0.5 A/50 VAC
DC 13 1 A/30 VDC
Mechanical life (typical) ≥ 1,000 000 cycles
Electrical life (typical) > 100,000 AC11 or DC11
1,800 operations per hour
Minimum load power 1 mW
Dielectric voltage 1,000 VAC (rms) (cont./supply)
Light source GaAlAs, LED, 660 nm
Light type Visible, modulated
Optical angle ± 1.5°
Light spot size 280 mm at 4 m
Ambient light Max. 5’000 lux
Operating frequency 20 Hz
Response time (object related)
OFF-ON (tON) ≤ 20 ms
ON-OFF (tOFF) ≤ 30 ms
Power ON delay (tv
) ≤ 300 ms (typ. 100 ms)
Output function Switch selectable, mute active high or
active low. Relay NO or NC
Mute function
Active high ≥ 12 VDC/VAC
Response time < 45 ms
Hold time < 70 ms
Active low < 6 VDC/VAC
Response time < 70 ms
Hold time < 45 ms
Max current 35 mA @ 24 VDC
70 mA @ 24 VAC
Indication
Target detected LED, yellow
Power LED, green
Signal LED, green
Environment
Overvoltage category III (IEC 60664/ 60664A; 60947-1)
Pollution degree 3 (IEC 60664/ 60664A; 60947-1)
Degree of protection IP 67 (IEC 60529; 60947-1)

Temperature
Operating -25° to +60°C (-76° to +140°F)
Storage -35° to +80°C (-31° to +176°F)
Vibration 10 to 150 Hz, 0.5 mm/7.5 g
(IEC 60068-2-6)
Shock 2 x 1m & 100 x 0.5 m (IEC 60068-2-32)
Rated insulation voltage 250 VAC (rms)
Housing material
Outer cover PC, grey
Inner cover PMMA, red
Backpart ABS, black
Cable outlet Kraiburg TC5MLZ or TP5VCZ
Connection
Screw terminal 5 x 2 x 1 mm2
One entry for cable 3 to 6.5 mm
Weight 110 g
CE-marking EN12453, EN12445, EN12978
